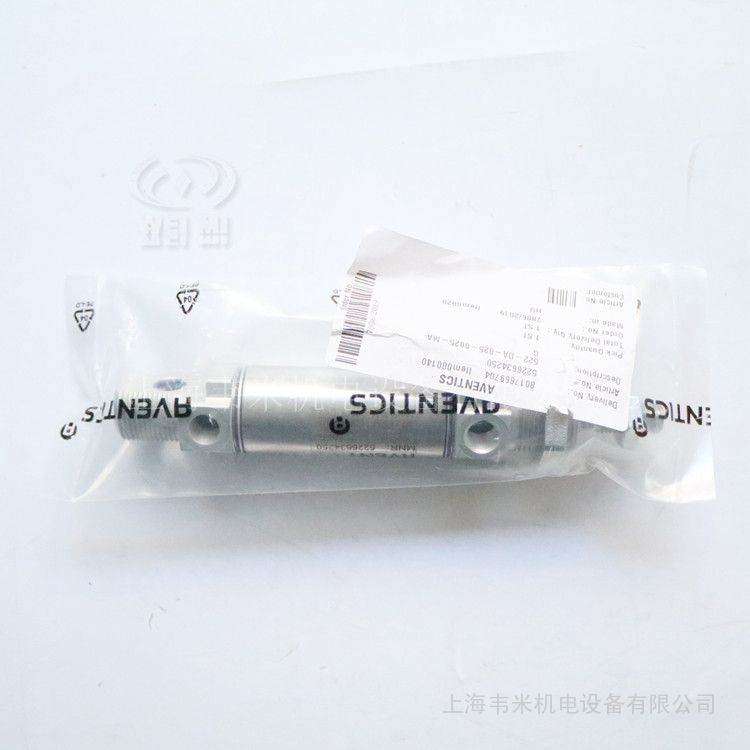

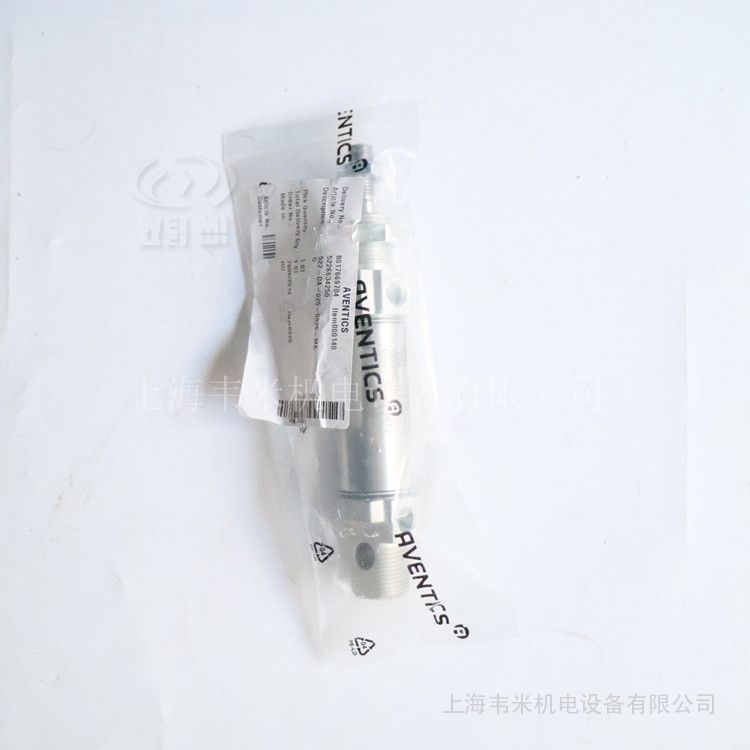

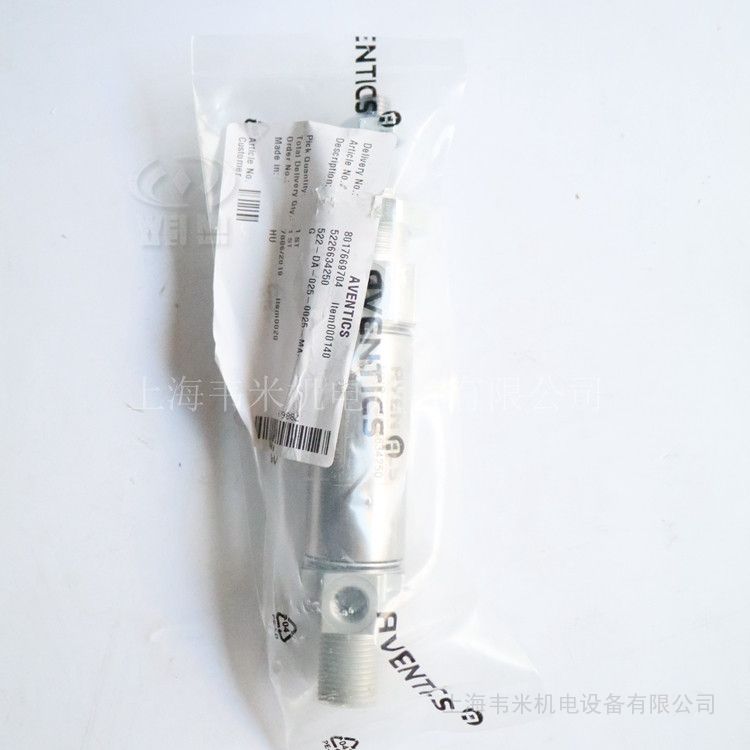

AVENTICS带磁性活塞微型气缸5226634250，德国安沃驰AVENTICS微型气缸，上海韦米机电设备有限公司供应产品，原厂原装，质量保障，价格优惠；
安沃驰AVENTICS微型气缸, 系列 MNI-5226634250
ISO 6432φ 25 mm接口 G 1/8双作用式带磁性活塞缓冲 弹性聚合衬套位于悬挂固定装置中活塞杆 外螺纹
实用原则 双作用式
缓冲 弹性
磁性销钉 带磁性活塞
活塞直径 25 mm
活塞杆螺纹 M10x1,25
标准化 ISO 6432
行程 25 mm
密封件材料 丙烯树胶,聚氨酯
防尘圈 聚氨酯
压缩空气连接 G 1/8
压缩空气接口型号 内螺纹
标准 ISO 6432
压缩空气连接 内螺纹
工作压力范围 1 ... 10 bar
低 / 高环境温度 -25 ... 80 °C
介质温度范围 -25 ... 80 °C
介质 压缩空气
颗粒大小 max. 50 μm
压缩空气中的含油量 0 ... 5 mg/m3
确定活塞推力的压力 6.3 bar
重量 0.3kg
气缸管子 不锈钢
活塞杆 不锈钢
活塞 黄铜, 铝材
前端盖板 铝材, 阳极氧化处理
后盖 铝材, 阳极氧化处理
密封 丙烯树胶 聚氨酯
锁紧环螺母 钢, 镀锌
用于活塞杆的特殊螺母 钢, 镀锌
防尘圈 聚氨酯
压力必须至少低于环境和介质温度15°C ，并且允许的高温度为3°C 。
压缩空气的油含量必须在整个使用寿命中保持不变。
磁性传感器必需的紧固零件
气动执行元件和控制元件
气动执行元件是一种能量转换装置，它是将压缩空气的压力能转化为机械能，驱动机构实现直线往复运动、摆动、旋转运动或冲击动作。气动执行元件分为气缸和气马达两大类。气缸用于提供直线往复运动或摆动，输出力和直线速度或摆动角位移。气马达用于提供连续回转运动，输出转矩和转速。
气动控制元件用来调节压缩空气的压力流量和方向等，以保证执行机构按规定的程序正常进行工作。气动控制元件按功能可分为压力控制阀、流量控制阀和方向控制阀。
气缸
一、气缸的工作原理、分类及安装形式
1.气缸的典型结构和工作原理
以气动系统中常使用的单活塞杆双作用气缸为例来说明，气缸典型结构。它由缸筒、活塞、活塞杆、前端盖、后端盖及密封件等组成。双作用气缸内部被活塞分成两个腔。有活塞杆腔称为有杆腔，无活塞杆腔称为无杆腔。
当从无杆腔输入压缩空气时，有杆腔排气，气缸两腔的压力差作用在活塞上所形成的力克服阻力负载推动活塞运动，使活塞杆伸出；当有杆腔排气时，使活塞杆缩回。若有杆腔和无杆腔交替进气和排气，活塞实现往复直线运动。
2.气缸的分类
气缸的种类很多，一般按气缸的结构特征、功能、驱动方式和安装方法等进行分类。分类的方法也不同，按照结构特征，气缸主要分为活塞式气缸和膜片式气缸两种。按照运动形式为直线运动气缸和摆动气缸两类。
3.气缸的安装形式，气缸的安装形式可分为
1、固定式气缸：气缸安装在机体上固定不动，有脚座式和法兰式。
2、轴销式气缸：气缸围绕固定轴可作一定角度的摆动，有U形钩式和耳轴式。
3、回转式气缸：气缸固定在机床主轴上，可随机床主轴作高速旋转运动。这种气缸常用于机床上气动卡盘中，以实现工件的自动装卡。
4、嵌入式气缸：气缸缸筒直接制作在夹具体内。
转盘轴承座的重要构造方式辨别有：四点接触球转盘轴承座、双列角接触推力球转盘轴承座、穿插圆柱滚子转盘轴承座、穿插圆锥滚子转盘轴承座、三排圆柱滚子配合转盘轴承座。
按能否带齿及齿轮的散布部位又分为：无齿式、外齿式或内齿式等不同构造。
其中四点接触球转盘轴承座具有较高的静承载才能，穿插圆柱滚子转盘轴承座具有较高的动承载才能，穿插圆锥滚子转盘轴承座可经过施加预载荷进步支承刚性和回转精度，而三排圆柱滚子配合转盘轴承座则把轴承座高度加大以进步承载才能，载荷辨别有不同滚道接受，因此在一样的受力状况下，其轴承座直径可大大减少，因此使主机更紧凑，是一种具有高承载才能的转盘轴承座。
转盘轴承座普遍用于起重运输机械、采掘机械、建造机械、港口机械、船舶机具以及高精度的雷达等的大型回转安装上。
螺栓：机械零件，配用螺母的圆柱形带螺纹的紧固件。由头部和螺杆（带有外螺纹的圆柱体）两部分组成的一类紧固件，需与螺母配合，用于紧固连接两个带有通孔的零件。 这种连接形式称螺栓连接。如把螺母从螺栓上旋下，又可以使这两个零件分开，故螺栓连接是属于可拆卸连接。
螺栓有很多叫法，每个人的叫法可能都不同，有人叫成螺钉，有人叫成螺栓钉，有人叫成紧固件。虽然有这么多叫法，但意思都是一样的，都是螺栓。螺栓是紧固件的通用说法。螺栓是利用物体的斜面圆形旋转和摩擦力的物理学和数学原理，循序渐进地紧固器物机件的工具。
AVENTICS带磁性活塞微型气缸5226634250
安沃驰AVENTICS微型气缸订货号和型号：
5221680000 522-DA-032-
5221680010 522-DA-032-0050-5221680
5221680030 522-DA-032-
5221680050 522-DA-032-0060-5221680
5221680070 522-DA-032-0040-5221680
5221680100 522-DA-032-0025-5221680
5221680110 522-DA-032-0080-5221680
5221680120 522-DA-032-
5221680130 522-DA-032-
5221680140 522P-032-0250-211012A01G00-M00-000-0000
5221680180 522-DA-032-
5221680190 522-DA-032-0030-5221680
5221780000 522-DA-040-
5221780010 522-DA-040-0050-5221780
5221780020 522-DA-040-
5221780060 522-DA-040-0040-5221780
5221780090 522-DA-040-0020-5221780
5221780100 522-DA-040-0025-5221780
5221780110 522-DA-040-0080-5221780
5221780120 522-DA-040-
5221780130 522-DA-040-
5221780140 522-DA-040-
5221780150 522-DA-040-
5221780170 522-DA-040-
5221780220 522-DA-040-
5221780280 522-DA-040-0063-5221780
5221793820 522-DA-040-1500-5221793-MODI
5221880000 522-DA-050-
5221880010 522-DA-050-0050-5221880
5221880020 522-DA-050-
5221880030 522-DA-050-
5221880040 522-DA-050-
5221880090 522-DA-050-0090-5221880
5221880110 522-DA-050-0080-5221880
5221880130 522-DA-050-
5221880140 522-DA-050-
5221880210 522-DA-050-
5221880280 522-DA-050-
5221880420 522-DA-050-0010-5221880
5221880450 522-DA-050-0030-5221880
5221880460 522-DA-050-0035-5221880
5221880530 522-DA-050-0085-5221880
5221880560 522-DA-050-
5221980000 522-DA-063-
5221980010 522-DA-063-0050-5221980
5221980020 522-DA-063-
5221980030 522-DA-063-
5221980090 522-DA-063-
5221980100 522-DA-063-0025-5221980
5221980110 522-DA-063-0080-5221980
5221980120 522-DA-063-
5221980140 522-DA-063-
5221980240 522-DA-063-0060-5221980
5221980260 522-DA-063-
5221980590 522-DA-063-
5221980650 522-DA-063-
5222056800 522-DA-080-0020-5222056-MODI
5222080000 522-DA-080-
5222080010 522-DA-080-0050-5222080
5222080020 522-DA-080-
5222080120 522-DA-080-
5222080130 522-DA-080-
5222080150 522-DA-080-
5222080270 522-DA-080-
5222080280 522-DA-080-
5222080440 522-DA-080-
5222156900 522-DA-100-0020-5222156-MODI
5222180000 522-DA-100-
5222180010 522-DA-100-0050-5222180
5222180030 DBL-ACTING PNEU.CY 100D-200H
5222180130 522-DA-100-
5222180140 522-DA-100-
5222180200 522-DA-100-
5222280080 DBL-ACTING PNEU.CY 125D-280H
5222280130 522-DA-125-
5222280160 522-DA-125-
5222380040 522-DA-160-
5222380110 522-DA-160-0080-5222380
5222380120 522-DA-160-
5222380170 522-DA-160-
5222480010 522-DA-200-0050-5222480
5222480050 522-DA-200-
5222480150 522-DA-200-
5222480170 522-DA-200-
5222880150 522-DA-125-
5222880180 522-DA-125-
5225454900 522-DA-200-0100-545-MODI
5226000100 522-DA-010-0010
5226000150 522-DA-010-0015
5226000250 522-DA-010-0025
5226000500 522-DA-010-0050
5226000750 522-DA-010-0075
5226002000 522-DA-010-0200
5226010100 522-DA-012-0010
5226010150 522-DA-012-0015
5226010200 522-DA-012-0020
5226010250 522-DA-012-0025
5226010500 522-DA-012-0050
5226010800 522-DA-012-0080
5226011400 522-DA-012-0140
5226020100 522-DA-016-0010
5226020150 522-DA-016-0015
5226020250 522-DA-016-0025
5226020300 522-DA-016-0030
5226020350 522-DA-016-0035
5226020500 522-DA-016-0050
5226020600 522-DA-016-0060
5226020750 522-DA-016-0075
5226020800 522-DA-016-0080
5226021000 522-DA-016-0100
5226021250 522-DA-016-0125
5226021600 522-DA-016-0160
5226022000 522-DA-016-0200
5226028150 MNI-DA-016-0015-602815-MODI
5226028610 MNI-DA-016-0050-08220322-MODI
5226034100 522-DA-025-0010
5226034150 522-DA-025-0015
5226034200 522-DA-025-0020
5226034250 522-DA-025-0025
5226034300 522-DA-025-0030
5226034350 522-DA-025-0035
5226034400 522-DA-025-0040
5226034500 522-DA-025-0050
5226034600 522-DA-025-0060
5226034750 522-DA-025-0075
5226034800 522-DA-025-0080
5226034900 522-DA-025-0090
5226035000 522-DA-025-0100
5226035100 522-DA-025-0110
5226035200 522-DA-025-0120
5226035250 522-DA-025-0125
5226035500 522-DA-025-0150
5226035600 522-DA-025-0160
5226035700 522-DA-025-0170
5226036000 522-DA-025-0200
5226036100 522-DA-025-0210
5226036500 522-DA-025-0250
5226037200 522-DA-025-0320
5226037500 522-DA-025-0350
5226039000 MNI-DA-025-0030-603900-MODI
5226039100 522-DA-025-0400
5226039110 522-DA-025-0450
5226039120 522-DA-025-0500
5226039300 MNI-DA-025-0030-603930-MODI
5226039400 MNI-DA-025-0025-603940-MODI
5226044100 522-DA-020-0010
5226044150 522-DA-020-0015
5226044200 522-DA-020-0020
5226044250 522-DA-020-0025
5226044350 522-DA-020-0035
5226044400 522-DA-020-0040
5226044500 522-DA-020-0050
5226044800 522-DA-020-0080
5226045000 522-DA-020-0100
5226045250 522-DA-020-0125
5226045500 522-DA-020-0150
5226045600 522-DA-020-0160
5226046000 522-DA-020-0200
5226046500 522-DA-020-0250
5226047000 522-DA-020-0300
5226049010 522-DA-020-0480
5226049910 522-DA-020-0065-0822033-MODI
5226600100 522-DA-010-0010-MAG
5226600150 522-DA-010-0015-MAG
5226600200 522-DA-010-0020-MAG
5226600250 522-DA-010-0025-MAG
5226600300 522-DA-010-0030-MAG
5226600400 522-DA-010-0040-MAG
5226600500 522-DA-010-0050-MAG
5226600600 522-DA-010-0060-MAG
5226600650 522-DA-010-0065-MAG
5226600700 522-DA-010-0070-MAG
5226600750 522-DA-010-0075-MAG
5226600800 522-DA-010-0080-MAG
5226601000 522-DA-010-0100-MAG
5226601250 522-DA-010-0125-MAG
5226601600 522-DA-010-0160-MAG
5226602000 522-DA-010-0200-MAG
5226603502 CB1-522-010-025-RM7
5226603512 CB1-522-010-025-RM4
5226603522 CB1-522-010-080-RM4
5226603532 CB1-521-010-080-275
5226608990 522-DA-010-0020-MAG-MODI
5226610100 522-DA-012-0010-MAG
5226610150 522-DA-012-0015-MAG
5226610200 522-DA-012-0020-MAG
5226610250 522-DA-012-0025-MAG
5226610300 522-DA-012-0030-MAG
5226610350 522-DA-012-0035-MAG
5226610400 522-DA-012-0040-MAG
5226610500 522-DA-012-0050-MAG
5226610600 522-DA-012-0060-MAG
5226610650 522-DA-012-0065-MAG
5226610700 522-DA-012-0070-MAG
5226610750 522-DA-012-0075-MAG
5226610800 522-DA-012-0080-MAG
5226611000 522-DA-012-0100-MAG
5226611250 522-DA-012-0125-MAG
5226611500 522-DA-012-0150-MAG
5226611600 522-DA-012-0160-MAG
5226611750 522-DA-012-0175-MAG
5226612000 522-DA-012-0200-MAG
5226612500 522-DA-012-0250-MAG
5226613200 522-DA-012-0320-MAG
5226618010 522-DA-012-0480-MAG
5226618020 522-DA-012-0400-MAG
5226620100 522-DA-016-0010-MAG
5226620150 522-DA-016-0015-MAG
5226620180 522-DA-016-0018-MAG
5226620200 522-DA-016-0020-MAG
5226620250 522-DA-016-0025-MAG
5226620300 522-DA-016-0030-MAG
5226620350 522-DA-016-0035-MAG
5226620400 522-DA-016-0040-MAG
5226620450 522-DA-016-0045-MAG
5226620500 522-DA-016-0050-MAG
5226620550 522-DA-016-0055-MAG
5226620600 522-DA-016-0060-MAG
5226620700 522-DA-016-0070-MAG
5226620750 522-DA-016-0075-MAG
5226620800 522-DA-016-0080-MAG
5226620900 522-DA-016-0090-MAG
5226621000 522-DA-016-0100-MAG
5226621100 522-DA-016-0110-MAG
5226621150 522-DA-016-0115-MAG
5226621200 522-DA-016-0120-MAG
5226621250 522-DA-016-0125-MAG
5226621350 522-DA-016-0135-MAG
5226621500 522-DA-016-0150-MAG
5226621600 522-DA-016-0160-MAG
5226621700 522-DA-016-0170-MAG
5226621750 522-DA-016-0175-MAG
5226621800 522-DA-016-0180-MAG
5226621900 522-DA-016-0190-MAG
5226622000 522-DA-016-0200-MAG
5226622200 522-DA-016-0220-MAG
5226622400 522-DA-016-0240-MAG
5226622500 522-DA-016-0250-MAG
5226622650 522-DA-016-0265-MAG
5226622700 522-DA-016-0270-MAG
5226623000 522-DA-016-0300-MAG
5226623500 522-DA-016-0350-MAG
5226628000 522-DA-016-0490-MAG
5226628010 522-DA-016-0495-MAG
5226628020 522-DA-016-0400-MAG
5226628030 522-DA-016-0850-MAG
5226628040 522-DA-016-0550-MAG
5226634100 522-DA-025-0010-MAG
5226634150 522-DA-025-0015-MAG
5226634200 522-DA-025-0020-MAG
5226634250 522-DA-025-0025-MAG
5226634300 522-DA-025-0030-MAG
5226634350 522-DA-025-0035-MAG
5226634400 522-DA-025-0040-MAG
5226634500 522-DA-025-0050-MAG
5226634550 522-DA-025-0055-MAG
5226634600 522-DA-025-0060-MAG
5226634650 522-DA-025-0065-MAG
5226634700 522-DA-025-0070-MAG
5226634750 522-DA-025-0075-MAG
5226634800 522-DA-025-0080-MAG
5226634900 522-DA-025-0090-MAG
5226635000 522-DA-025-0100-MAG
5226635100 522-DA-025-0110-MAG
5226635200 522-DA-025-0120-MAG
5226635250 522-DA-025-0125-MAG
5226635300 522-DA-025-0130-MAG
5226635400 522-DA-025-0140-MAG
5226635500 522-DA-025-0150-MAG
5226635600 522-DA-025-0160-MAG
5226635700 522-DA-025-0170-MAG
5226635750 522-DA-025-0175-MAG
5226635800 522-DA-025-0180-MAG
5226636000 522-DA-025-0200-MAG
5226636100 522-DA-025-0210-MAG
5226636200 522-DA-025-0220-MAG
5226636250 522-DA-025-0225-MAG
5226636350 522-DA-025-0235-MAG
5226636500 522-DA-025-0250-MAG
5226636600 522-DA-025-0260-MAG
5226636700 522-DA-025-0270-MAG
5226636900 522-DA-025-0290-MAG
5226637000 522-DA-025-0300-MAG
5226637200 522-DA-025-0320-MAG
5226637350 522-DA-025-0335-MAG
5226637500 522-DA-025-0350-MAG
5226639000 522-DA-025-0400-MAG
5226639010 522-DA-025-0490-MAG
5226639020 522-DA-025-0450-MAG
5226639030 522-DA-025-0500-MAG
5226639040 522-DA-025-0560-MAG
5226639050 522-DA-025-0420-MAG
5226639060 522-DA-025-0620-MAG
5226639070 522-DA-025-0440-MAG
5226639080 522-DA-025-0425-MAG
5226639090 522-DA-025-0550-MAG
5226639190 522-DA-025-0600-MAG
5226639700 MNI-DA-025-0050-663970-MODI
5226639710 MNI-DA-025-0100-663971-MODI
5226644050 522-DA-020-0005-MAG
5226644100 522-DA-020-0010-MAG
5226644200 522-DA-020-0020-MAG
5226644250 522-DA-020-0025-MAG
5226644300 522-DA-020-0030-MAG
5226644350 522-DA-020-0035-MAG
5226644400 522-DA-020-0040-MAG
5226644500 522-DA-020-0050-MAG
5226644750 522-DA-020-0075-MAG
5226644800 522-DA-020-0080-MAG
5226645000 522-DA-020-0100-MAG
5226645250 522-DA-020-0125-MAG
5226645600 522-DA-020-0160-MAG
5226647000 522-DA-020-0300-MAG
5226649010 MNI-DA-020-0080-6649-MODI
5226649700 MNI-DA-020-0160-6649-MODI
5226649710 MNI-DA-020-0200-6649-MODI
5226720100 522-DA-016-0010-CUS-MAG
5226720150 522-DA-016-0015-CUS-MAG
5226720250 522-DA-016-0025-CUS-MAG
5226720300 522-DA-016-0030-CUS-MAG
5226720400 522-DA-016-0040-CUS-MAG
5226720500 522-DA-016-0050-CUS-MAG
5226720600 522-DA-016-0060-CUS-MAG
5226720750 522-DA-016-0075-CUS-MAG
5226720800 522-DA-016-0080-CUS-MAG
5226721000 522-DA-016-0100-CUS-MAG
5226721250 522-DA-016-0125-CUS-MAG
5226721500 522-DA-016-0150-CUS-MAG
5226721600 522-DA-016-0160-CUS-MAG
5226722000 522-DA-016-0200-CUS-MAG
5226734100 522-DA-025-0010-CUS-MAG
5226734150 522-DA-025-0015-CUS-MAG
5226734200 522-DA-025-0020-CUS-MAG
5226734250 522-DA-025-0025-CUS-MAG
5226734300 522-DA-025-0030-CUS-MAG
5226734350 522-DA-025-0035-CUS-MAG
5226734400 522-DA-025-0040-CUS-MAG
5226734500 522-DA-025-0050-CUS-MAG
5226734600 522-DA-025-0060-CUS-MAG
5226734650 522-DA-025-0065-CUS-MAG
5226734700 522-DA-025-0070-CUS-MAG
5226734750 522-DA-025-0075-CUS-MAG
5226734780 522-DA-025-0078-CUS-MAG
5226734800 522-DA-025-0080-CUS-MAG
5226734900 522-DA-025-0090-CUS-MAG
5226735000 522-DA-025-0100-CUS-MAG
5226735100 522-DA-025-0110-CUS-MAG
5226735150 522-DA-025-0115-CUS-MAG
5226735250 522-DA-025-0125-CUS-MAG
5226735300 522-DA-025-0130-CUS-MAG
5226735400 522-DA-025-0140-CUS-MAG
5226735500 522-DA-025-0150-CUS-MAG
5226735600 522-DA-025-0160-CUS-MAG
5226735750 522-DA-025-0175-CUS-MAG
5226735800 522-DA-025-0180-CUS-MAG
5226736000 522-DA-025-0200-CUS-MAG
5226736500 522-DA-025-0250-CUS-MAG
5226736600 522-DA-025-0260-CUS-MAG
5226736650 522-DA-025-0265-CUS-MAG
5226736700 522-DA-025-0270-CUS-MAG
5226737000 522-DA-025-0300-CUS-MAG
5226737200 522-DA-025-0320-CUS-MAG
5226737500 522-DA-025-0350-CUS-MAG
5226737550 522-DA-025-0355-CUS-MAG
5226737700 522-DA-025-0370-CUS-MAG
5226739140 522-DA-025-0400-CUS-MAG
5226739230 522-DA-025-0420-CUS-MAG
5226744100 522-DA-020-0010-CUS-MAG
5226744150 522-DA-020-0015-CUS-MAG
5226744200 522-DA-020-0020-CUS-MAG
5226744250 522-DA-020-0025-CUS-MAG
5226744300 522-DA-020-0030-CUS-MAG
5226744400 522-DA-020-0040-CUS-MAG
5226744500 522-DA-020-0050-CUS-MAG
5226744600 522-DA-020-0060-CUS-MAG
5226744650 522-DA-020-0065-CUS-MAG
5226744750 522-DA-020-0075-CUS-MAG
5226744800 522-DA-020-0080-CUS-MAG
5226745000 522-DA-020-0100-CUS-MAG
5226745250 522-DA-020-0125-CUS-MAG
5226745400 522-DA-020-0140-CUS-MAG
5226745500 522-DA-020-0150-CUS-MAG
5226745600 522-DA-020-0160-CUS-MAG
5226745700 522-DA-020-0170-CUS-MAG
5226746000 522-DA-020-0200-CUS-MAG
5226746500 522-DA-020-0250-CUS-MAG
5226746700 522-DA-020-0270-CUS-MAG
5226747000 522-DA-020-0300-CUS-MAG
5226747200 522-DA-020-0320-CUS-MAG
5226749020 522-DA-020-0400-CUS-MAG
5228000100 522-SA-010-0010
5228000150 522-SA-010-0015
5228000250 522-SA-010-0025
5228010250 522-SA-012-0025
5228010400 522-SA-012-0040
5228020100 522-SA-016-0010
5228020200 522-SA-016-0020
5228020250 522-SA-016-0025
5228034100 522-SA-025-0010
5228034250 522-SA-025-0025
5228034500 522-SA-025-0050
5228039100 MNI-SA-025-0300-803910-MODI
5228039120 MNI-SA-025-0250-803912-MODI
5228044100 522-SA-020-0010
5228044250 522-SA-020-0025
5228044300 522-SA-020-0030
5228044500 522-SA-020-0050
5228049500 SGL-ACTING PNEU.C 20Q, 50H, G1/8
5230000002 SEAL KIT 523-032 INKL.KOLBEN
5230000082 CM1-AA6-032-M2-A
5230000322 ASSEMBLY KIT .
5230030002 SEAL KIT 523-DA-032
5230033502 CB1-523-032-063-RM6
5230130002 WEAR AND TEAR PART 523-DA-032-TP
5230800092 BOLT W.LOCKING RING-D32
5230990002 WEAR AND TEAR PART LU6-032
5230996402 LU6-032-AL-AN
5231000002 SEAL KIT 523-040 INKL. KOLBEN
5231000082 CM1-AA6-040-M2-A
5231000092 CM1-AA4-032-M2-A
5231005902 CONNECTOR 3/4 POS.CYL.
5231030002 SEAL KIT 523-DA-040
5231800092 BOLT W.LOCKING RING-D40
5231823432 AUFHAENGEBEFESTIGUNG (SPHAERISCH)
5231990002 WEAR AND TEAR PART LU6-040
5231996402 LU6-040-AL-AN
5232000002 SEAL KIT 523-050 INKL. KOLBEN
5232000082 CM1-AA6-050-M2-A
5232030002 SEAL KIT 523-DA-050
5232200002 SEAL KIT 523-DA-050-LOW FRICT
5232800092 BOLT W.LOCKING RING-D50
5232990002 WEAR AND TEAR PART LU6-050
5232996402 LU6-050-AL-AN
5233000002 SEAL KIT 523-063 INKL. KOLBEN
5233000082 CM1-AA6-063-M2-A
5233030002 SEAL KIT 523-DA-063
5233040002 WEAR AND TEAR PART ITS-063-FPM
5233130002 WEAR AND TEAR PART 523 DA-063 TP
5233200002 SEAL KIT 523-DA-063-LOW FRICT
5233800092 BOLT W.LOCKING RING-D63
5233900002 SEAL KIT 523-DA-063-V2A
5233990002 WEAR AND TEAR PART LU6-063
5233996402 LU6-063-AL-AN
5234000002 SEAL KIT 523-080 INKL.KOLBEN
5234000082 CM1-AA6-080-M2-A
5234030002 SEAL KIT 523-DA-080
5234200002 SEAL KIT 523-DA-080-LOW FRICT
5234800092 BOLT W.LOCKING RING-D80
5234900002 SEAL KIT 523-DA-080-V2A
5234990002 WEAR AND TEAR PART LU6-080
5234996402 LU6-080-AL-AN
5235000002 SEAL KIT 523-100 INKL.KOLBEN
5235000082 CM1-AA6-100-M2-A
5235000092 CM1-AA4-100-M2-A
5235030002 SEAL KIT 523-DA-100
5235130002 WEAR AND TEAR PART 523-DA-100-TP
5235200002 SEAL KIT 523-DA-100-LOW FRICT
5235800092 BOLT W.LOCKING RING-D100
5235900002 SEAL KIT 523-DA-100-V2A
5235990002 WEAR AND TEAR PART LU6-100
5235996402 LU6-100-AL-AN
5236000002 SEAL KIT 523-DA-125 M.KOLBEN
5236000082 CM1-AA6-125-M2-A
5236000092 CM1-AA4-125-M2-A
5236030002 SEAL KIT 523-DA-125
5236040002 WEAR AND TEAR PART ITS-125-FPM
5236200002 SEAL KIT 523-DA-125-LOW FRICT
5236800092 BOLT W.LOCKING RING-D125
5236990002 WEAR AND TEAR PART LU6-125
5236996402 LU6-125-AL-AN
5237000002 SEAL KIT 523-DA-160 M.KOLBEN
5237000082 CM1-AA6-160-M2-A
5237000092 CM1-AA4-160/200-M2-A
5237006902 CM1-MT4-160-ITS-M1-A
5237030002 SEAL KIT 523-DA-160
5237038070 ITS-DA-160-0165-CP-M-NBR-A006
5237040002 WEAR AND TEAR PART 523-DA-160-FPM
5237800092 BOLT W.LOCK. RING-D160/200
5238000002 SEAL KIT 523-DA-200 M.KOLBEN
5238006902 CM1-MT4-200-ITS-M1-A
5238030002 SEAL KIT 523-DA-200
5238040002 WEAR AND TEAR PART 523-DA-200-FPM
5239000002 SEAL KIT 523-DA-250 M.KOLBEN
5239000092 CM1-AA4-250-M2-A
5239004010 523-DA-250- -MODI
5239006902 CM1-MT4-250-ITS-M1-A
5239010002 WEAR AND TEAR PART 523-DA-320
5239010012 SEAL KIT 523-DA-320
5239010092 CM1-AA4-320-M2-A
5239010502 CM1-MS1-320-M2-A
5239013422 CM1-AB7-320-M1-A
5239013432 CM1-AB6-320-M1-A-ISO15552
5239013442 CM1-CS7-320-M1-A
5239013452 CM1-MP6-320-M1-A-ISO15552
5239016012 CM1-MF1-320-M2-A
5239016902 CM1-MT4-320-ITS-M1-A
5239030002 SEAL KIT 523-DA-250
5239040012 WEAR AND TEAR PART 523-DA-320-VITON
5239813402 CM1-MP2-320-M1-A-ISO15552
5239813412 CM1-MP4-320-M1-A-ISO15552
5257620002 WEAR AND TEAR PART 525-050
5257620020 POS.ZYL.150H/50Q
5257621000 POSITIONIER-EINHEIT 100H
5257621020 POSITIONIEREINHEIT 50D, 150H
5257640000 POSITIONIER-EINHEIT 80Q, 100H
5257640020 POSITIONIER-EINHEIT 80Q, 150H
5257640030 POS.ZYL.200H
5257640032 WEAR AND TEAR PART 52576-080
5257640040 POSITIONIEREINHEIT 80Q, 250H
5257640050 POSITIONIER-EINHEIT 300H
5257640110 POSITIONIER-EINHEIT 80Q, 600H
5257641000 POSITIONIER-EINHEIT 80Q, 100H
5257641020 POSITIONIER-EINHEIT 80Q, 150H
5257641970 POSITIONIEREINHEIT 80Q, 300H
5257642040 POSITIONIER-EINH-525-DA-080-
5257642050 POSITIONIER-EINH-525-DA-080-
5257644020 POSITIONIER-EINHEIT 80Q, 150H
5257644880 POSITIONIER-EINHEIT 80Q, 170H
5257646000 POSITIONIEREINHEIT 80Q, 100H
5257646020 POSITIONIER EINHEIT 80Q, 150H
5257660022 WEAR AND TEAR PART 52576-125
5257660900 POSITIONIER-ZYL-525-DA-125-0300-525-MODI
5257661020 POSITIONIER-EINH-525-DA-125-0150-525766
5258830990 CCY-DA-063-0020-MODI
5259055202 POTENTIOMETER100H
5259055222 POTENTIOMETER 150H
5283000020 OCT-DA-016-0010
5283000050 OCT-DA-016-0025
5283000100 OCT-DA-016-0050
5283000250 OCT-DA-016-0125
5283000800 OCT-DA-016-0400
5283003502 CB1-OCT-010-063-ST8
5283003512 CB1-OCT-010-063-ST6
5283003522 CB1-OCT-010-025-275 10 STCK/PCS
5283003532 CB1-OCT-010-025-ST6 10 STCK/PCS
5283010020 OCT-DA-016-0010
5283010040 OCT-00-16-0020-31-0-2-0-0-11-0000-0000-1
5283010050 OCT-DA-016-0025-0031020011000000000000LN
5283010080 OCT-00-16-0040-31-0-2-0-0-11-0000-0000-1
5283010100 OCT-DA-016-0050
5283010120 OCT-00-16-0060-31-0-2-0-0-11-0000-0000-1
5283010160 OCT-DA-016-0080
5283010200 OCT-00-16-0100-31-0-2-0-0-11-0000-0000-1
5283010250 OCT-DA-016-0125
5283010320 OCT-DA-016-0160
5283010400 OCT-DA-016-0200
5283010500 OCT-00-16-0250-31-0-2-0-0-11-0000-0000-1
5283010640 OCT-DA-016-0320
5283010800 OCT-DA-016-0400
5283011000 OCT-00-16-0500-31-0-2-0-0-11-0000-0000-1
5283020020 OCT-DA-016-0010
5283020160 OCT-DA-016-0080
5283020250 OCT-DA-016-0125-0031121011000000000000LN
5283030020 OCT-DA-016-0010
5283030050 OCT-DA-016-0025
5283030100 OCT-DA-016-0050
5283030130 OCT-DA-016-0065-0031120011000000000000LN
5283030160 OCT-DA-016-0080
5283030200 OCT-DA-016-0100
5283030250 OCT-DA-016-0125-0031120011000000000000LN
5283030300 OCT-00-16-0150-31-1-2-0-0-11-0000-0000-1
5283030320 OCT-DA-016-0160
5283030400 OCT-DA-016-0200
5283100020 OCT-DA-016-0010
5283100050 OCT-DA-016-0025-0003021011000000000000LN
5283100100 OCT-DA-016-0050
5283100200 OCT-DA-016-0100
5283100400 OCT-DA-016-0200-0003021011000000000000LN
5283100500 OCT-DA-016-0250
5283110020 OCT-DA-016-0010-0003020011000000000000LN
5283110050 OCT-DA-016-0025
5283110060 OCT-DA-016-0030
5283110100 OCT-00-16-0050-03-0-2-0-0-11-0000-0000-1
5283110120 OCT-00-16-0060-03-0-2-0-0-11-0000-0000-1
5283110160 OCT-DA-016-0080
5283110200 OCT-00-16-0100-03-0-2-0-0-11-0000-0000-1
5283110250 OCT-DA-016-0125-0003020011000000000000LN
5283110320 OCT-DA-016-0160
5283110400 OCT-00-16-0200-03-0-2-0-0-11-0000-0000-1
5283110500 OCT-DA-016-0250
5283110640 OCT-DA-016-0320
5283110800 OCT-DA-016-0400
5283111000 OCT-DA-016-0500
5283120050 OCT-DA-016-0025
5283120100 OCT-DA-016-0050-0003121011000000000000LN
5283120160 OCT-DA-016-0080
5283130020 OCT-DA-016-0010
5283130050 OCT-DA-016-0025-0003120011000000000000LN
5283130060 OCT-DA-016-0030
5283130100 OCT-DA-016-0050
5283130120 OCT-DA-016-0060-0003120011000000000000LN
5283130160 OCT-DA-016-0080
5283130200 OCT-DA-016-0100
5283130250 OCT-DA-016-0125
5283130320 OCT-DA-016-0160
5283130400 OCT-DA-016-0200
5283131000 OCT-DA-016-0500
5284000070 OCT-DA-020-0035
5284000100 OCT-DA-020-0050
5284000160 OCT-DA-020-0080-0031021011000000000000LN
5284000200 OCT-DA-020-0100-0031021011000000000000LN
5284000250 OCT-DA-020-0125
5284000400 OCT-DA-020-0200-0031021011000000000000LN
5284010020 OCT-DA-020-0010-0031020011000000000000LN
5284010030 OCT-00-20-0015-31-0-2-0-0-11-0000-0000-1
5284010040 OCT-00-20-0020-31-0-2-0-0-11-0000-0000-1
5284010050 OCT-00-20-0025-31-0-2-0-0-11-0000-0000-1
5284010060 OCT-00-20-0030-31-0-2-0-0-11-0000-0000-1
5284010080 OCT-00-20-0040-31-0-2-0-0-11-0000-0000-1
5284010100 OCT-DA-020-0050
5284010120 OCT-00-20-0060-31-0-2-0-0-11-0000-0000-1
5284010160 OCT-00-20-0080-31-0-2-0-0-11-0000-0000-1
5284010200 OCT-DA-020-0100
5284010250 OCT-00-20-0125-31-0-2-0-0-11-0000-0000-1
5284010300 OCT-00-20-0150-31-0-2-0-0-11-0000-0000-1
5284010320 OCT-DA-020-0160
5284010400 OCT-00-20-0200-31-0-2-0-0-11-0000-0000-1
5284010500 OCT-DA-020-0250
5284010600 OCT-00-20-0300-31-0-2-0-0-11-0000-0000-1
5284010640 OCT-DA-020-0320
5284010900 OCT-00-20-0450-31-0-2-0-0-11-0000-0000-1
5284020020 OCT-DA-020-0010
5284030020 OCT-DA-020-0010
5284030050 OCT-DA-020-0025
5284030080 OCT-00-20-0040-31-1-2-0-0-11-0000-0000-1
5284030100 OCT-DA-020-0050
5284030160 OCT-DA-020-0080
5284030200 OCT-DA-020-0100
5284030250 OCT-DA-020-0125-0031120011000000000000LN
5284030320 OCT-DA-020-0160
5284030400 OCT-DA-020-0200
5284030500 OCT-DA-020-0250
5284030640 OCT-DA-020-0320-0031120011000000000000LN
5284100030 OCT-DA-020-0015-0003021011000000000000LN
5284100050 OCT-00-20-0025-03-0-2-1-0-11-0000-0000-1
5284100100 OCT-DA-020-0050
5284100160 OCT-DA-020-0080
5284100200 OCT-DA-020-0100-0003021011000000000000LN
5284100250 OCT-DA-020-0125
5284100320 OCT-DA-020-0160-0003021011000000000000LN
5284100400 OCT-DA-020-0200
5284100500 OCT-DA-020-0250-0003021011000000000000LN
5284100800 OCT-DA-020-0400-0003021011000000000000LN
5284101000 OCT-DA-020-0500
5284110020 OCT-DA-020-0010-0003020011000000000000LN
5284110030 OCT-DA-020-0015-0003020011000000000000LN
5284110050 OCT-00-20-0025-03-0-2-0-0-11-0000-0000-1
5284110080 OCT-DA-020-0040-0003020011000000000000LN
5284110100 OCT-DA-020-0050-0003020011000000000000LN
5284110120 OCT-00-20-0060-03-0-2-0-0-11-0000-0000-1
5284110160 OCT-DA-020-0080
5284110200 OCT-00-20-0100-03-0-2-0-0-11-0000-0000-1
5284110250 OCT-DA-020-0125
5284110320 OCT-00-20-0160-03-0-2-0-0-11-0000-0000-1
5284110400 OCT-DA-020-0200
5284110500 OCT-00-20-0250-03-0-2-0-0-11-0000-0000-1
5284110640 OCT-DA-020-0320
5284110800 OCT-DA-020-0400
5284111000 OCT-DA-020-0500
5284120100 OCT-DA-020-0050
5284120320 OCT-DA-020-0160
5284130020 OCT-DA-020-0010-0003120011000000000000LN
5284130050 OCT-DA-020-0025
5284130100 OCT-DA-020-0050
5284130120 OCT-DA-020-0060-0003120011000000000000LN
5284130160 OCT-DA-020-0080
5284130200 OCT-DA-020-0100-0003120011000000000000LN
5284130250 OCT-DA-020-0125
5284130300 OCT-DA-020-0150
5284130320 OCT-DA-020-0160
5284130400 OCT-DA-020-0200
5284130500 OCT-DA-020-0250
5284130640 OCT-DA-020-0320
5285000020 OCT-DA-025-0010
5285000050 OCT-00-25-0025-31-0-2-1-0-11-0000-0000-2
5285000100 OCT-00-25-0050-31-0-2-1-0-11-0000-0000-2
5285000160 OCT-DA-025-0080-0031021011000000000000LN
5285000320 OCT-DA-025-0160
5285000400 OCT-00-25-0200-31-0-2-1-0-11-0000-0000-2
5285000640 OCT-DA-025-0320
5285000800 OCT-DA-025-0400
5285010020 OCT-DA-025-0010-0031020011000000000000LN
5285010030 OCT-00-25-0015-31-0-2-0-0-11-0000-0000-2
5285010040 OCT-00-25-0020-31-0-2-0-0-11-0000-0000-2
5285010050 OCT-00-25-0025-31-0-2-0-0-11-0000-0000-2
5285010060 OCT-00-25-0030-31-0-2-0-0-11-0000-0000-2
5285010080 OCT-00-25-0040-31-0-2-0-0-11-0000-0000-2
5285010100 OCT-00-25-0050-31-0-2-0-0-11-0000-0000-2
5285010120 OCT-00-25-0060-31-0-2-0-0-11-0000-0000-2
5285010150 OCT-00-25-0075-31-0-2-0-0-11-0000-0000-2
5285010160 OCT-DA-025-0080
5285010200 OCT-00-25-0100-31-0-2-0-0-11-0000-0000-2
5285010250 OCT-00-25-0125-31-0-2-0-0-11-0000-0000-2
5285010300 OCT-00-25-0150-31-0-2-0-0-11-0000-0000-2
5285010320 OCT-DA-025-0160-0031020011000000000000LN
5285010400 OCT-DA-025-0200
5285010500 OCT-DA-025-0250
5285010600 OCT-00-25-0300-31-0-2-0-0-11-0000-0000-2
5285010640 OCT-00-25-0320-31-0-2-0-0-11-0000-0000-2
5285010800 OCT-DA-025-0400
5285011000 OCT-00-25-0500-31-0-2-0-0-11-0000-0000-2
5285020020 OCT-DA-025-0010
5285020050 OCT-DA-025-0025-0031121011000000000000LN
5285020100 OCT-DA-025-0050
5285020160 OCT-DA-025-0080
5285020200 OCT-DA-025-0100
5285030050 OCT-DA-025-0025
5285030100 OCT-DA-025-0050-0031120011000000000000LN
5285030160 OCT-DA-025-0080
5285030200 OCT-DA-025-0100
5285030250 OCT-DA-025-0125
5285030300 OCT-DA-025-0150
5285030320 OCT-DA-025-0160
5285030400 OCT-DA-025-0200-0031120011000000000000LN
5285030500 OCT-DA-025-0250
5285030640 OCT-DA-025-0320
5285030700 OCT-DA-025-0350-0031120011000000000000LN
5285030800 OCT-DA-025-0400
5285031000 OCT-DA-025-0500
5285100050 OCT-DA-025-0025-0003021011000000000000LN
5285100100 OCT-DA-025-0050-0003021011000000000000LN
5285100120 OCT-00-25-0060-03-0-2-1-0-11-0000-0000-2
5285100160 OCT-DA-025-0080-0003021011000000000000LN
5285100200 OCT-DA-025-0100-0003021011000000000000LN
5285100250 OCT-DA-025-0125
5285100320 OCT-DA-025-0160
5285100400 OCT-DA-025-0200-0003021011000000000000LN
5285100500 OCT-DA-025-0250-0003021011000000000000LN
5285100600 OCT-DA-025-0300
5285100640 OCT-DA-025-0320
5285100800 OCT-DA-025-0400-0003021011000000000000LN
5285110020 OCT-DA-025-0010
5285110040 OCT-00-25-0020-03-0-2-0-0-11-0000-0000-2
5285110050 OCT-00-25-0025-03-0-2-0-0-11-0000-0000-2
5285110060 OCT-DA-025-0030-0003020011000000000000LN
5285110080 OCT-DA-025-0040-0003020011000000000000LN
5285110100 OCT-00-25-0050-03-0-2-0-0-11-0000-0000-2
5285110120 OCT-00-25-0060-03-0-2-0-0-11-0000-0000-2
5285110130 OCT-00-25-0065-03-0-2-0-0-11-0000-0000-2
5285110160 OCT-DA-025-0080
5285110200 OCT-00-25-0100-03-0-2-0-0-11-0000-0000-2
5285110250 OCT-DA-025-0125-0003020011000000000000LN
5285110300 OCT-00-25-0150-03-0-2-0-0-11-0000-0000-2
5285110320 OCT-DA-025-0160
5285110400 OCT-DA-025-0200
5285110500 OCT-DA-025-0250-0003020011000000000000LN
5285110600 OCT-00-25-0300-03-0-2-0-0-11-0000-0000-2
5285110640 OCT-00-25-0320-03-0-2-0-0-11-0000-0000-2
5285110700 OCT-DA-025-0350
5285110800 OCT-DA-025-0400
5285111000 OCT-00-25-0500-03-0-2-0-0-11-0000-0000-2
5285120100 OCT-DA-025-0050-0003121011000000000000LN
5285120200 OCT-DA-025-0100-0003121011000000000000LN
5285120400 OCT-DA-025-0200
5285130020 OCT-DA-025-0010
5285130050 OCT-00-25-0025-03-1-2-0-0-11-0000-0000-2
5285130080 OCT-DA-025-0040-0003120011000000000000LN
5285130100 OCT-00-25-0050-03-1-2-0-0-11-0000-0000-2
5285130130 OCT-DA-025-0065-0003120011000000000000LN
5285130160 OCT-DA-025-0080
5285130200 OCT-DA-025-0100
5285130250 OCT-DA-025-0125
5285130320 OCT-DA-025-0160
5285130400 OCT-DA-025-0200
5285130500 OCT-DA-025-0250
5285130600 OCT-00-25-0300-03-1-2-0-0-11-0000-0000-2
5285130640 OCT-DA-025-0320
5285130700 OCT-00-25-0350-03-1-2-0-0-11-0000-0000-2
5285130800 OCT-00-25-0400-03-1-2-0-0-11-0000-0000-2
5285130900 OCT-00-25-0450-03-1-2-0-0-11-0000-0000-2
5285131000 OCT-DA-025-0500
5324001110 SILENCER M10X1
5324001120 SILENCER M14X1,5
5324001140 SILENCER M22X1,5
5324001170 SILENCER M12X1,5
5324002000 SILENCER M8X1 INNEN
5324002020 SILENCER M12X1
5324011210 SILENCER G 1/4
5324011220 SILENCER G3/8
5324011230 SILENCER G1/2
5324011250 SILENCER G1-10BAR(-40BIS60)CEL
5340050002 ERSATZTEILP??CKCHEN
5340050010 NON-RETURN VALVE ZZ99-G018-G018
5340051000 NON-RETURN VALVE ZZ99-G014-G014
5340051010 NON-RETURN VALVE ZZ99-G014-G014
5340053000 NON-RETURN VALVE ZZ99-G012-G012
5340170000 SELECTEUR-DE-CIRCUIT-M14X1.5-CHELLES
5340170090 SELECTEUR-DE-CIRCUIT-SANS-LAMAGE-CHELLES
5340170100 SELECTEUR-DE-CIRCUIT-1/4"-CHELLES
5340970300 CLAPET ANTI-RETOUR .
5340970400 NON-RETURN VALVE ZZ99-G114-G114
5340970500 NON-RETURN VALVE ZZ99-G112-G112
5340970600 NON-RETURN VALVE ZZ99-G200-G200
5340981000 NON-RETURN VALVE ZZ99-G018-G018
5340981100 NON-RETURN VALVE ZZ99-G014-G014
5340981200 NON-RETURN VALVE ZZ99-G038-G038
5340981300 NON-RETURN VALVE ZZ99-G012-G012
5340981400 NON-RETURN VALVE ZZ99-G034-G034
5341050000 FLOW-CONTROL VALVE ZZ99-M005-M005
5341060000 FLOW-CONTROL VALVE ZZ99-M010-M010
5341060002 SPARE PART KIT .
5341061000 FLOW-CONTROL VALVE ZZ99-G018-G018
5341080000 THROTTLE CHECK VLV NW7-M14X1,5
5341081000 FLOW-CONTROL VALVE ZZ99-G014-G014
5341120000 THROTTLE VALVE ZZ99-M005-M005
5341121100 THROTTLE VALVE ZZ99-G018-G018
5341122100 THROTTLE VALVE ZZ99-G014-G014
5341123100 THROTTLE VALVE ZZ99-G038-G038
5341124100 THROTTLE VALVE ZZ99-G012-G012
5341200000 ZZ99-G018-DI04
5341200100 THROTTLE CHECK VLV ZZ99-G014-DI04
5341200200 ZZ99-DI04-G018
5341200600 ZZ99-DI04-DI04
5341210000 ZZ99-DI06-DI06
5341210300 ZZ99-G014-DI06
5341300000 THROTTLE CHECK VLV NW4-PLUG
5342000000 SHUTTLE VALVE NW2 M5
5342010100 FLOW-CONTROL VALVE NW4 G1/8
5342010200 SHUTTLE VALVE NW4 Q6X1
5342100000 SHUTTLE VALVE NW2 FUER ROHR 5X1
5342100010 SHUTTLE VALVE NW2-PUSH-IN-4X1
5342101000 SHUTTLE VALVE NW2 (100 STUECK)
5349000000 MEDIUMSPERRE
5349000002 SPARE PART KIT .
5351002312 VERTEILER C4I 2CONNECTORS
5351006022 FLANSCH (PAARWEISE) C4I, G3/8
5351026002 CLAMPING-FLANGE C15 G1/4 (PAIRS)
5351286000 FIL. D48 1"
5351840010 MAINTENANCE UNIT NL2, G1/4
5351840170 MAINTENANCE UNIT NL2, G1/4
5351840440 MAINTENANCE UNIT NL2, G1/4
5352600000 KUGELHAHN C4I, O.GEW.FLANSCHE
5420309220 SOLENOID-OPERATED .
5420309420 MAGNET .
5420457904 OPERATION .
5420500002 SPARE PART KIT .
5420500020 PILOT VALVE 24VDC
5420500220 PILOT VALVE 24VDC
5420507012 CO1-FORM_A-012DC-2,1W-30MM
5420507022 CO1-FORM_A-024DC-2,1W-30MM
5420507032 CO1-FORM_A-048DC-2,2W-30
5420507072 SOLENOID COIL 110VDC
5420507082 SPULE 220V=
5420507152 SPULE 75 VDC
5420523422 COIL 24VDC FORM A -CSA-UL
5420527022 COIL 24VDC
5420607222 COIL 24VDC
5420607722 SPULE
5420647022 CO1-024DC-4,8W-30MM
5420700220 PILOT VALVE 24V= ..
5420707022 CO1-FORM_A-024DC-4,5W-30MM
5420707062 SOLENOID COIL SPULE 125V=
5420707072 CO1-FORM_A-110DC-4,1W-30MM
5420770220 SOLENOID-OPERATED 3/2-24VDC-6W
5420775280 3/2 SOLENOID PILOT VALVE 220VAC 50/60H
5420800390 PILOT VALVE 24VDC/42V-50HZ-CNOMO
5420817392 SOLENOID COIL 24VDC/42V-50HZ
5420850020 PILOT VALVE 24VDC
5420890010 VALVE SOLENOID .
5420890020 SOLENOID-OPERATED 3/2 NW1,5 24V DC
5420890030 PILOT VALVE 48V=
5420890070 PILOT VALVE 110VDC
5420890080 VORSTEUERVENTIL CNOMO 220V-DC
5420895312 PILOT VALVE BASIC-CNOMO-NO COIL
5420897022 CO1-FORM_A-024DC-2,7W-30MM
5420900002 ASSEMBLY KIT CD07
5420900220 PILOT VALVE 24VDC-NO SPE. CONTROL
5420905202 PILOT VALVE CD07
5420930210 MAGNET SYSTEM 3/2NC-012DC-1,6W-SC
5420930220 MAGNET SYSTEM 3/2NC-024DC-1,6W-SC
5420935220 MAGNET SYSTEM 3/2NC-024AC-1,6W-SC
5420935240 MAGNET SYSTEM 3/2NC-048AC-1,6W-SC
5420935270 MAGNET SYSTEM 3/2NC-110AC-1,6W-SC
5420935280 MAGNET SYSTEM 3/2NC-230AC-1,6W-SC
5420940620 MAGNET SYSTEM 3/2NC-024DC-1,6W-SC
5420945670 MAGNET SYSTEM 3/2NC-110AC-1,6W-SC
5420945680 MAGNET SYSTEM 3/2NC-230AC-1,6W-SC
5421300220 MAGNET SYSTEM 3/2NC-024DC-2,0W-SC
5421310210 MAGNET SYSTEM 3/2NC-012DC-2,0W-SC-&
5421310220 MAGNET SYSTEM 3/2NC-024DC-2,0W-SC-&
5421315270 MAGNET SYSTEM 3/2NC-110AC-2,0W-SC-&
5421315280 MAGNET SYSTEM 3/2NC-230AC-2,0W-SC-&
5421320220 MAGNET SYSTEM 3/2NC-024DC-2,0W-SC
5421330220 MAGNET SYSTEM 3/2NC-024DC-2,0W-SC-&
5421480220 2-FACH VORSTEUERVENTIL 24V-DC
5421500220 PILOT VALVE NW1,1 24VDC
5428110020 PILOT VALVE 24V-50/60HZ
5428110040 EVP CN 1,3/1,5 48V50/60HZ SC
5428110070 SOLENOID COIL 110/115V-50/60HZ
5428110080 PILOT VALVE 220V-50/60 HZ
5428117022 CO1-FORM_A-024AC-5,2VA-30
5428117072 CO1-FORM_A-110AC-4,8VA-30
5428117082 CO1-FORM_A-230AC-5,6VA-30MM
5428150080 PILOT VALVE 220V-50/60HZ
5428200370 PILOT VALVE 110VAC-CNOMO
5428200380 PILOT VALVE 220V-50/60 HZ
5428307082 COIL 220V-50HZ
5428407282 COIL 220V-50/60HZ
5428450020 VORSTEUERVENTIL 24V-50/60HZ ..
5428450080 VORSTEUERVENTIL 220V-50/60HZ
5428450270 PILOT VALVE 110/115V-50/60HZ
5428450280 PILOT VALVE 220V-50/60HZ
5428457022 CO1-FORM_A-024AC-4,2VA-30MM
5428457032 SPULE 42V-50/60HZ
5428457042 CO1-FORM_A-048AC-4,3VA-30MM
5428457072 CO1-FORM_A-110AC-4,2VA-30MM
5428457082 CO1-FORM_A-230AC-4,9VA-30MM
5428457112 CO1-FORM_A-240AC-4,2VA-30
5428477082 SPULE 220V 50/60HZ
5428477772 COIL 110VAC FORM A -CSA-UL
5432020020 BANK MOUNT.KIT 543-2
5432020050 BANK MOUNT.KIT 543-5
5432020060 MOUNTING KIT 543-6
5432020070 MOUNTING KIT 543-7
5432020100 BANK MOUNT.KIT 543-10
5452210800 BLOCKING G 1/4 QUICK D.8
5453219300 VALVE 545-G3/8-M5
5454219400 VALVE BLOCKING G 1/2 THREAD
5460076812 REGULATOR .
5460190000 CONTROL ELECTRONIC F. POS.-ZYL.2KANAL
5460190020 POSITIONIERREGLER
5460196722 POSITIONIERREGLER (EURO-UNI) SMD
5460424342 CONNECTING CABLE VDS L=1000MM
5460463602 DATENSTECKER PROFIBUS DP 12MBAUD
5460464252 KONFEKTIONIERTES KABEL
5460464322 KONFEKTIONIERTES KABEL
5500020000 550-002 MOD. 3 3/2 VALVE NORM. C
5500024020 BALL BEARING KIT-MEC550
5500050000 550-005 MOD. 3 3/2 VALVE NORM. C
5500070000 550-007 MOD3 3/2 NORM. C
5500090000 550-009 MOD. 3 3/2 VALVE NORM. C
5500280000 550-028 MOD. 3 3/2 VALVE NORM. C
5500510000 550-051 MOD. 3 3/2 VALVE NORM. C
5500520000 550-052 MOD. 3 3/2 VALVE NORM. C
5500530000 550-053 MOD. 3 3/2 VALVE NORM. C
5500540000 550-054 MOD. 3 3/2 VALVE NORM. C
5500560000 SERVO VALVE 550-056
5500590000 550-059 MOD. 3 3/2 VALVE NORM.C
5501020000 550-102 MOD. 3 3/2 VALVE NORM. O
5501050000 550-105 MOD3 3/2 NORM. O
5501070000 550-107 MOD. 3 3/2 VALVE NORM. O
5501090000 550-109 MOD. 3 3/2 VALVE NORM. O
5501280000 550-128 MOD. 3 3/2 VALVE NORM. O
5501510000 550-151 MOD3, 3/2 NORM. O
5501520000 550-152 MOD3 3/2 NORM. O
5501530000 550-153 MOD. 3 3/2 VALVE NORM. O
5501540000 550-154 MOD3 3/2 NORM. O
5501560000 550-156 MOD. 3 3/2 VALVE NORM. O
5501590000 550-159 MOD. 3 3/2 VALVE NO
5504410000 BEARING PEDESTAL 550-441
5510030000 CONTAINER AIR-551/003
5510100000 VALVE 551-010
5510120000 VALVE .
5510120100 VALVE 551-012 010
5510121100 VALVE 551-012 110
5510130000 VALVE 551-013
5510140000 VALVE 551-014
5510150000 VALVE 551-015
5510160000 VALVE 551-016
5510160100 VALVE 551-016 010
5510161100 SHUTTLE VALVE 551-016-110
5510200000 VALVE 551-020
5510240000 VALVE 551-024
5510250000 VALVE 551-025
5510250100 VALVE 551-025 010
5510251100 VALVE 551-025 110
5510260000 VALVE 551-026 F.F
5510260100 VALVE 551-026 010
5510261100 VALVE .
5510310000 SOLENOID-OPERATED 551-031
5510311340 SOLENOID-OPERATED 551-031 24V=
5510700000 FLOW-CONTROL VALVE 551-070
5511100000 VALVE 551-110
5512200000 VALVE 551-220 MOD. B
5512205000 VALVE 551-220
5512210000 DIR.-CONTROL VALVE 551-221-5/2-G1/8
5514250000 GASKET 551/425
5514400020 ACCESSORY(VALVES) 551-440-2
5514400030 ACCESSORY(VALVES) 551-440-3
5514400040 ACCESSORY(VALVES) 551-440-4
5514400050 ACCESSORY(VALVES) 551-440-5
5514400060 ACCESSORY(VALVES) 551-440-6
5514400070 ACCESSORY(VALVES) 551-440-7
5514400080 ACCESSORY(VALVES) 551-440-8
5514400090 ACCESSORY(VALVES) 551-440-9
5514400100 ACCESSORY(VALVES) 551-440-10
5514410000 FASTENING 551-441
5514500040 ACCESSORY(VALVES) 551-450-4
5514610000 FASTENING 551/461
5515410000 FASTENING 551-541
5515610000 MOUNTING KIT 551/561
5520011004 BEFESTIGUNG FUER HANDSCHIEBEVENTIL NW12
5520031004 FASTENING NW7-MANUAL SLIDE
5520050100 3/2 WEGE HANDSCHIEBERVENTIL NW4, G1/8
5520060100 3/2 WEGE HANDSCHIEBERVENTIL NW7, G1/4
5520070100 3/2 WEGE HANDSCHIEBERVENTIL NW12, G1/2
5530010522 MOUNTING PLATE ED07
5530011000 LUFTMENGENSENSOR 0...250L/MIN
5530011100 LUFTMENGENSENSOR I
5530011200 LUFTMENGENSENSOR I
5531210000 3/2 EL.CONTR.VALVE 22 MM NC
5531210100 3/2 EL.CONTR.VALVE 22MM 24V CD
5531210400 3/2 EL.CONTR.VALVE NC 230V AC
5531250000 3/2 EL.CONTR.VALVE 22 MM NC
5531250100 3/2 EL.CONTR.VALVE NC 24V DC
5531310000 3/2 EL.CONTR.VALVE 22 MM NO
5531310100 3/2 EL.CONTR.VALVE NO 24V DC
5531310400 3/2 EL.CONTR.VALVE NO 230V AC
5531350100 3/2 EL.CONTR.VALVE NO 24V DC
5531410000 3/2 EL.CONTR.VALVE 22 MM NC
5531410100 3/2 EL.CONTR.VALVR NC 24V DC
5531510000 3/2 EL.CONTR.VALVE 22 MM NO
5531510100 3/2 EL.CONTR.VALVE NO 24V DC
5540210100 DO16-3/2NC-IS15-024DC
5551210000 EL.CONTROL.VALVE 3/2NC-30MM-NO_COIL
5610102050 EV07-001-060-020-2DIAA
5610102060 EV07-001-060-020-2DIAA
5610102070 EV07-001-060-010-2DIAN
5610102150 EV07-001-060-420-2DIAA
5610102170 EV07-001-100-420-2DIAA
5610110900 ELEKTRO PNEUM. DRUCKREGELVENTIL NW4
5610111000 EV04-001-060-020-2DICA
5610111010 EV04-001-060-420-2DICA
5610111020 EV04-001-100-020-2DICA
5610111042 SCHNELLBEFESTIGUNG
5610111100 EV04-001-060-010-2DICN
5610111110 EV04-001-060-010-2DICA
5610111120 EV04-001-100-010-2DICN
5610113102 CONTROL PART .
5610115902 INSERT .
5610120020 ELEKTRO PNEUM. DRUCKREGELVENTIL NW4
5610120110 EP-DRUCKREGELVENTIL NW4, G1/8, 0-10BAR
5610120120 E/P DRUCKREGELVENTIL NW4,G1/8, 0-10BAR
5610120130 E/P-DRUCKREGELVENTIL 0-7BAR,0-10V E/A
5610120500 DRUCKREGELVENTIL NW4,PROPORTIONAL-MAGNET
5610120510 EP-REGULATOR NW4-PROP.MAGNET
5610120512 WINKELBLECH
5610120600 DRUCKREGELVENTIL NW4,PROPORTIONAL-MAGNET
5610120620 DRUCKREGELVENTIL NW4,PROPORTIONAL-MAGNET
5610120660 EP-REGULATOR (0-4,2)BAR
5610125902 VENTILEINSATZ
5610140302 ASSEMBLY KIT ED05-IND-XXX-ASS-1-F&
5610140312 ASSEMBLY KIT ED05-IND-XXX-ASS-1-F&
5610141002 BASE PLATE ED05-IND-XXX-ASS-1-F&
5610141012 BASE PLATE ED05-IND-XXX-ASS-2-F&
5610141022 BASE PLATE ED05-IND-XXX-ASS-3-F&
5610141052 BASE PLATE ED05-IND-XXX-ASS-6-F&
5610141072 BASE PLATE ED05-IND-XXX-ASS-8-F&
5610141092 BASE PLATE ED05-IND-XXX-ASS-10-&
5610141300 ED05-000-060-020-2DICA
5610141310 ED05-000-060-420-2DICA
5610141320 ED05-000-060-010-2DICN
5610141330 ED05-000-060-010-2DICA
5610141500 ED05-000-100-020-2DICA
5610141510 ED05-000-100-420-2DICA
5610141520 ED05-000-100-010-2DICN
5610141530 ED05-000-100-010-2DICA
5610141540 ED05-000-100-VDS-3M12X
5610141550 ED05-000-100-DDL-3M12X
5610149000 ED05-000-100-420-2DICA
5610149010 ED05-000-070-010-2DICA
5610149310 ED05-000-060-420-2DICA
5610210042 ASSEMBLY KIT .
5610211052 CONNECTION PLATE ED07-G3/8
5610214400 ED07-V10-010-020-2DIAA
5610214410 ED07-000-010-010-2DIAA
5610214500 ED07-000-100-020-2DIAA
5610214510 ED07-000-100-420-2DIAA
5610214520 ED07-000-100-010-2DIAN
5610214530 ED07-000-100-010-2DIAA
5610214840 E/P DRUCKREGELVENTIL 0-4BAR
5610214890 E/P DRUCKREGELVENTIL
5610214910 EP-REGULATOR (0-7)BAR-(0-10)V-E/A
5610214930 E/P DRUCKREGELVENT.0,2-3,5BAR,4-20MA E/A
5610214940 E/P DRUCKREGELVENTIL 0-20MA,0-50MBAR
5610219000 ED07-000-100-VDS-3XXXX
5610219010 E/P DRUCKREGELVENTIL NW7, 0-20BAR
5610219100 ED07-000-100-PDP-2XXXX
5610219200 ED07-000-100-IBS-3XXXX
5610219300
5610220092 ASSEMBLY KIT BEFESTIGUNGSSATZ ED12
5610221012 CONNECTION PLATE ED12C-SINGLE
5610224010 E/P-DRUCKREGELVENTIL 4-20MA, EXT.SENSOR
5610224510 ED12-000-100-420-2DIAA
5610224520 ED12-000-100-010-2DIAN
5610224530 ED12-000-100-010-2DIAA
5610231002 CONNECTION PLATE ARC
5610264200 ED07-000-200-020-2M12S
5610264210 ED07-000-200-420-2M12S
5610264220 ED07-000-200-010-2M12X
5610264230 ED07-000-200-010-2M12S
5610264500 ED07-000-100-020-2M12B
5610264510 ED07-000-100-420-2M12B
5610264520 ED07-000-100-010-2M12C
5610264530 ED07-000-100-010-2M12B
5610264800 ED07-000-060-020-2M12S
5610264810 ED07-000-060-420-2M12S
5610264820 ED07-000-060-010-2M12X
5610264830 ED07-000-060-010-2M12S
5619021072 ENDPLATTENBAUSATZ FUER E/P
5619030012 ERSATZTEIL-PAECKCHEN
5630100002 SPARE PART KIT .
5630180002 SPARE PART KIT .
5630180100 VR04-4/2DM-LEV
5630180130 VR04-4/2EC-LEV
5630180424 CAP .
5630181030 VR04-4/3EC-LEV
5630181100 VR04-4/3EC-LEV
5630182100 VR04-4/3CC-LEV
5630200000 ZZ99-3/2NC-PLU-ND4-POPPET
5630200002 SPARE PART KIT .
5630200080 ZZ99-3/2NC-ND4-POPPET
5630200100 ZZ99-3/2NC-ND4-POPPET
5630201000 3/2-WEGEVENTIL NW4, G1/8, BASISVENTIL
5630201010 V563-3/2NC-SR-BALL
5630201020 3/2-WEGEVENTIL NW4, G1/8, TASTROLLE
5630201030 3/2-WEGEVENTIL NW4, G1/8, TASTROLLE
5630201050 ZZ99-3/2NC-PUS-ND4-POPPET
5630201060 3/2-WEGEVENTIL NW4, G1/8, KIPPHEBEL
5630201070 ZZ99-3/2NC-LEV-ND4-POPPET
5630201120 3/2-WEGEVENTIL NW4, G1/8, TASTROLLE
5630201800 3/2-WEGEVENTIL NW4, G1/8, FUSSBETAETIG.
5630201810 3/2-WEGEVENTIL NW4, G1/8, FUSSBET??TIG.
5630201840 5/2-WEGEVENTIL NW4, G1/8, FUSSBETAETIG.
5630201850 5/2-WEGEVENTIL NW4, G1/8, FUSSBET??TIG.
5630202040 ZZ99-3/2NC-ROL-ND4-POPPET
5630202080 ZZ99-3/2NC-ROL-ND4-POPPET
5630202090 ZZ99-3/2NO-ROL-ND4-POPPET
5630203010 ZZ99-3/2NC-ROL-ND4-POPPET
5630209070 ZZ99-3/2NC-PLU-ND4-POPPET
5630209090 ZZ99-3/2NO-PUS-ND4-POPPET
5630209120 ZZ99-3/2NC-PUS-ND4-POPPET
气源系统和气源后处理系统
气源系统
在气压传动系统中，气源系统由气压发生器 (空气压缩机)、后冷却器、油水分离器、储气罐和传输管路五部分组成。
气压发生器(空气压缩机) 目前在气压传动中使用的空气压缩机主要是活塞式空气压缩机和螺杆式空气压缩机。
活塞式空气压缩机
活塞式空气压缩机的工作原理 活塞式空气压机通常分为单级活塞式空气压缩机和两级活塞式空气压缩机。
单级活塞式空气压缩机的工作原理。 1-连杆；2-活塞；3-排气阀；4-进气阀；5-气缸
单级活塞式空气压缩机，由曲柄滑块机构带动活塞上下往复运动。当活塞向下运动时，压缩缸容积快速增加，缸内压力小于大气压力，排气阀3被关闭，空气从进气阀4吸入缸内；当活塞达到最下位，反程向上运动时，进气阀４被关闭，排气阀3被推开，压缩空气从阀门3排出。
两级活塞式空气压缩机可由两个压缩缸或三个压缩缸组成。由两个压缩缸组成的两级活塞式空气压缩机的工作原理。
1-一级活塞；2-中间冷却器；3-二级活塞 11-2两级活塞式空气压缩机
两级活塞式空气压缩机是由两级压缩缸组合而成。在两级活塞式空气压缩机中，一级压缩缸将压缩空气经中间冷却器2输送到第二级压缩缸时，可将压缩空气压缩到0.3 MPa左右，然后，再由第二级压缩缸对外输出压力更高的压缩空气。 二级活塞式空气压缩机一级压缩缸吸气时，第二级压缩缸对外输出压缩空气，两缸互不相通；但是，当一级压缩缸压气时，第二级压缩缸则在同时吸气，两缸相互连通。为了使一级压缩缸在两缸相互连通的状态下能对第二级压缩缸施压，所以一级压缩缸的体积较大，第二级压缩缸体积较小。
由活塞式空气压缩机组成的简单气源系统 为了便于气源可自由转移，通常将活塞式空气压缩机与气源系统的其余各部件组合成一个可便于移动的整体，且简称为活塞式空压机，活塞式空压机的外观
单级活塞式空压机
两级活塞式空压机
所示的两种便于移动的活塞空气压缩机虽然结构都非常紧凑，但仍然都是可直接为气动系统提供普通工业用气的气源系统。
可移动两级活塞式空压机的组成，两级活塞式空压机的结构组成。其中，气压发生器是两级活塞式空压机；后冷却器是飞轮风扇片对弯曲的可散热型输气管道进行风冷；为了简化结构，省略了油水分离器，采用储气罐取代了油水分离的作用；供气口外的气管即为传输管路。 便于移动的活塞空气压缩机结构紧凑，转移方便，价格便宜，使用非常广泛。但活塞式空气压缩机的噪音很大，所以通常都安装在离用气设备较远的场所。
螺杆式空气压缩机的工作原理
螺杆式空气压缩机的基本结构和外观。
螺杆式空气压缩机的基本工作原理与液压传动中的螺杆泵基本相同，即利用螺杆啮合面之间的多个密闭工作腔来实现不断的吸气和压气。 螺杆式空气压缩机有干式和含油式两种，螺杆中不含油即为干式，螺杆中含油即为含油式。为了保护螺杆，目前大部分螺杆式空气压缩机均采用含油式。由于含油螺杆式空气压缩机压缩的不仅是空气，而且混合着大量的润滑油，即油气混合体。所以在含油螺杆式空气压缩机的螺杆输出口都配置有专用的油气分离装置。
油气分离装置不同于油水分离器，油水分离器分离出来的是水、油污和杂质，要排卸掉；而油气分离装置分离出来的是清洁的润滑油，要回收后循环再用。 由螺杆式空气压缩机组成的气源系统通常把空气压缩机、油气分离装置、后冷却器和油水分离器组合在一起，全部安放在方箱中，在方箱外再配置储气罐。 由含油螺杆式空气压缩机组成的气源系统。
由螺杆式空气压缩机组成的气源系统含油螺杆式空气压缩机气源系统的基本组成 螺杆式空气压缩机的噪音很小，且输出流量大，排气压力脉动小，无易损件，寿命长，效率高，常用于对压缩空气质量要求较高的场合
空气压缩机的重要辅件——空气过滤器空，为了防止将空气中的灰尘和杂物吸入空气压缩机，在空气压缩机的吸气口都必须配置空气过滤器，它不仅可以延长空气压缩机的使用寿命和维修周期，而且可以使空气得到一定程度的初始净化。
空气过滤器的基本结构：空气从进气口进入过滤器体内后，首先经过一个环形消声通道，消除吸气噪音，然后经滤芯过滤．再从出气口进入空气压缩机。为了便于清除滤芯上的灰尘和杂物，过滤器上都安有清理盖；过滤器的滤芯材料大部分和液压过滤器的纸质滤芯相同
后冷却器
空压机输出的压缩空气温度可高达120～180℃，如此高温，不仅气动控制元件和一些非金属气管承受不了，而且高温压缩空气中含有呈气态的大量水分和油雾，会阻碍气动系统的正常运行，所以在空气压缩机出口必须安装后冷却器，一方面使空压机输出的高温压缩空气冷却到可安全使用的温度（通常在40℃左右），同时，在压缩空气的后冷却过程中，可将压缩空气中的很大一部分水蒸气和油雾冷凝成水滴和油滴，使压缩空气得到初步净化。 后冷却器有风冷式和水冷式两大类。
风冷式后冷却器。它是靠风扇产生的冷风，吹向带散热片的热气管，为高温压缩空气降温。
水冷式后冷却器，它是通过冷却水沿热空气反方向流动，来降低压缩空气的温度。 后冷却器下部都安装有自动排水装置，,用以排除后冷却器内凝结出的部分水分和油污。
风冷式后冷却器
油水分离器
油水分离器可更进一步分离出经后冷却器初步净化后，在压缩空气中仍然残留的水分、油污和杂质。 油水分离器的结构形式有环形回转式、撞击挡板式、离心旋转式、水浴式及以上形式的组合，其主要工作原理是利用气流在急速回转过程中产生的离心撞击 或者将气流水洗等方式，使 水分、油污和其他杂质从压 缩空气中分离出来，达到进 一步净化压缩空气的目的。折回和环形回转组合形式的油水分离器。
安沃驰AVENTICS气缸和驱动装置：标准气缸、微型气缸、圆形气缸、紧凑型气缸、短行程气缸和薄型气缸、型材气缸、拉杆气缸、气缸阀门单元、无杆气缸、导向气缸、双活塞气缸、旋转驱动装置、波纹管气缸、带有测距传感器的气缸、膜片式气缸、气缸附件、气缸安装件（螺栓、法兰安装件、底脚安装件、U形安装件、后耳环、轴承支架、气缸安装件的螺母、摇动塞固定装置、中间法兰）、活塞杆连接件（柔性耦合连接件、U形接头、万向头、活塞杆延长部分、用于活塞杆的特殊螺母）、模块化密封系统、锁紧单元（夹持单元）、导向单元、工业缓冲器、搬运连接组件、磁接近传感器、位移测量传感器。
首页
飞语
我的
反馈
拨号
